Verify Overlay Configuration

In your browser, open another instance of the browser or another tab. Copy the url of Nexus Dashboard:

• ND URL: https://10.15.0.98/appcenter/cisco/ndfc/ui/dashboard

Step 1 - Login to Nexus Dashboard

At the Nexus Dashboard login screen, login using your username and password:

1. Username: admin
2. Password: cisco.123
3. Click Login

---

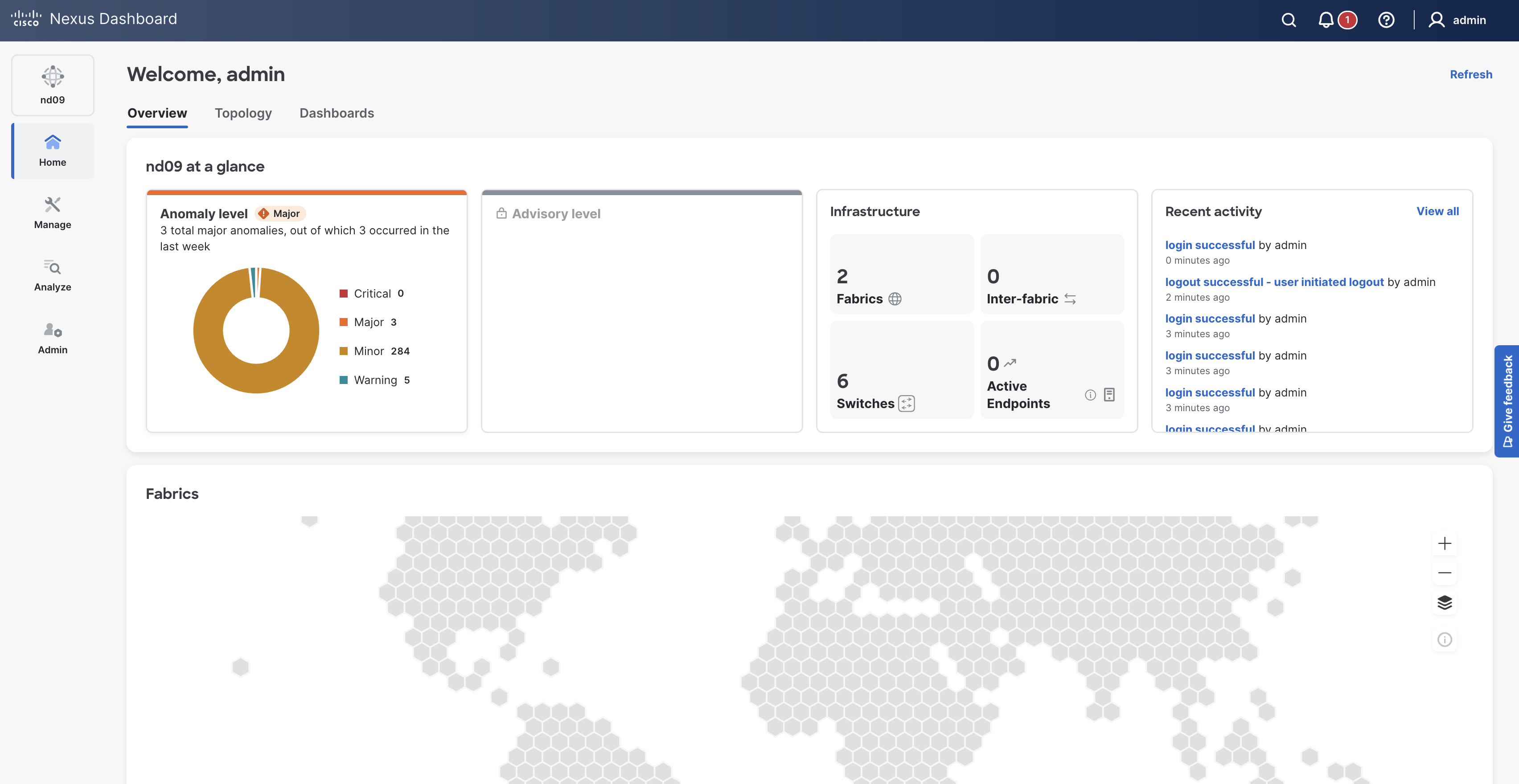

Step 2 - Close the PopUp Window

Close the dialogue box by clicking the X in the upper right corner

---

Step 3 - Nagivate to the Staging Fabric

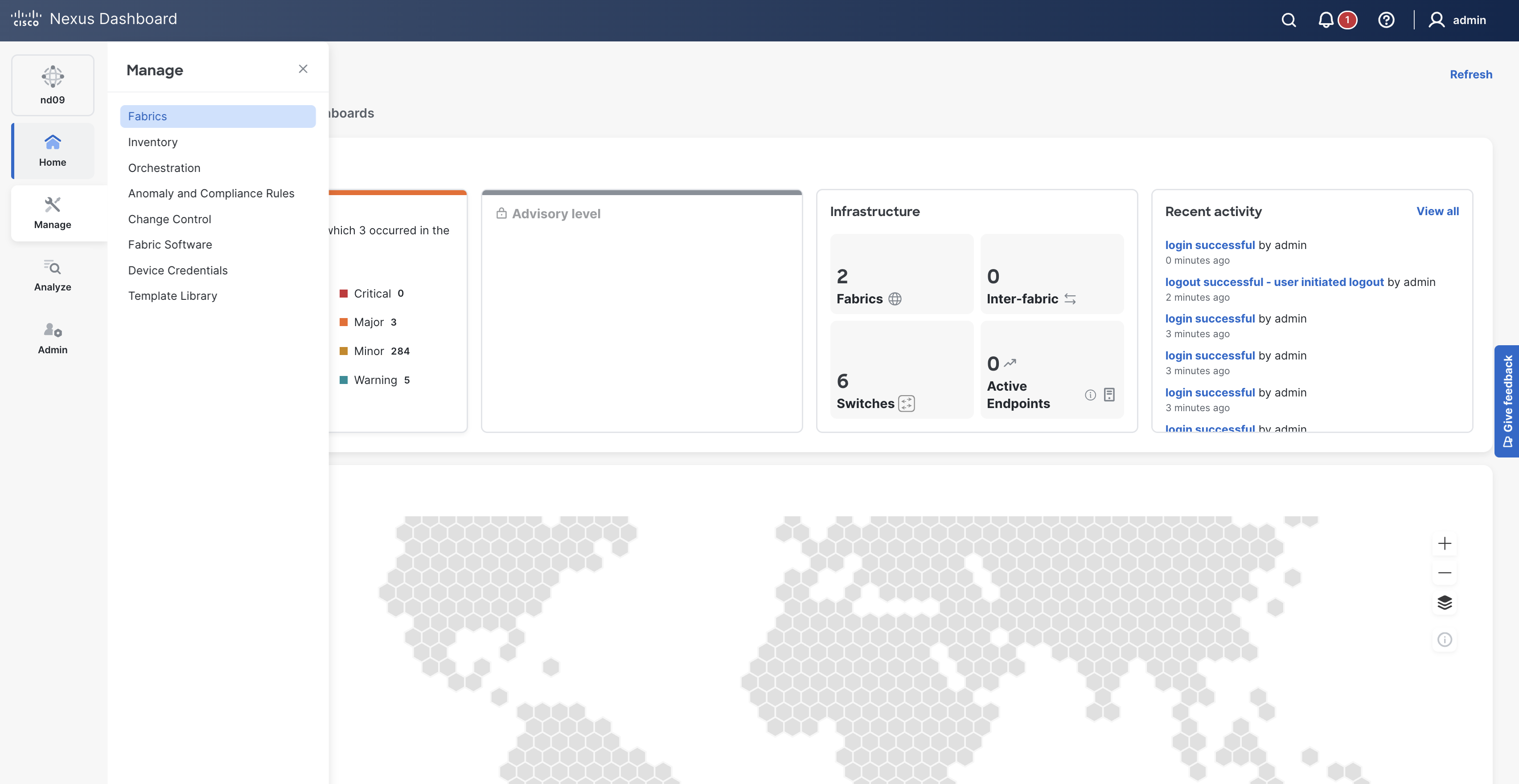

Once the NDFC Application is opened, open fabric-stage:

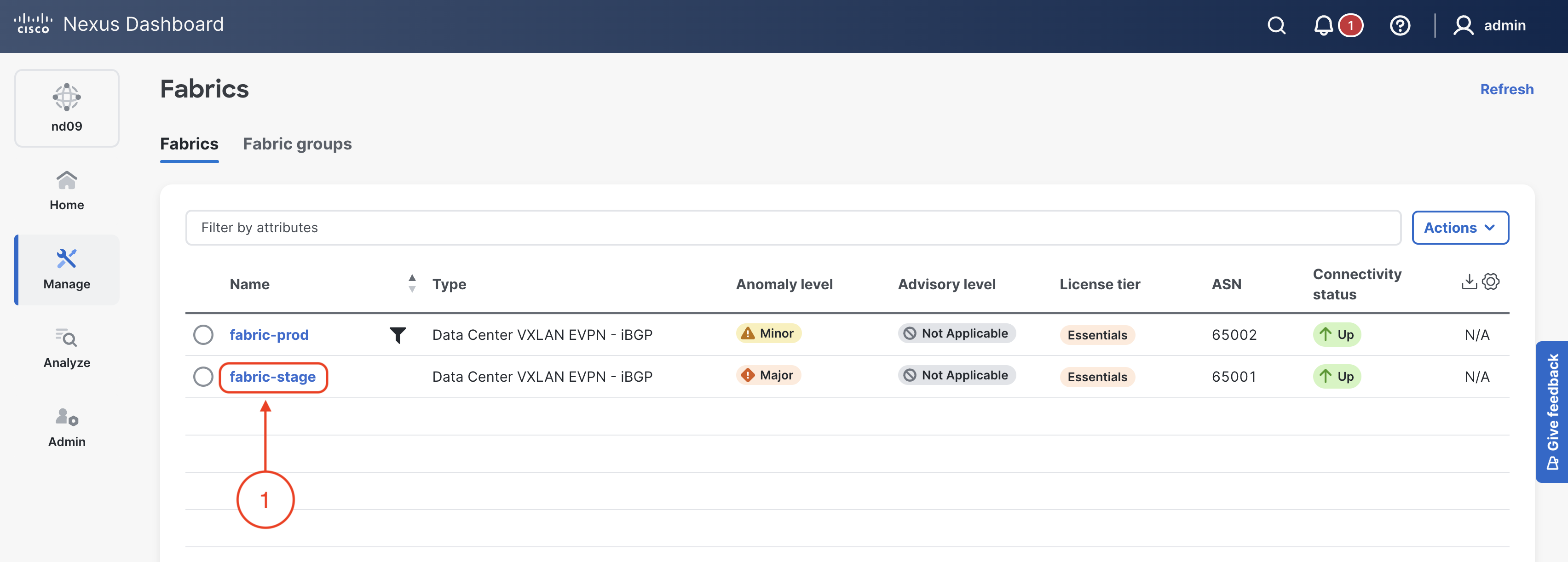

1. Double-click fabric-stage

---

Step 4 - Nagivate to the Staging Fabric

1. Double-click fabric-stage again

---

Step 5 - Verify VRF and Networks created on fabric-stage

On your browser that is open to Nexus Dashboard, click the VRFs tab:

1. Verify vrf_devnet is created

2. Double Click vrf_devnet which opens the VRF Overview pane

3. Click VRF attachments and verify vrf_devnet is attached to both leaf switches.

4. Click Networks and verify network_devnet1 and network_devnet2 are created

5. Double Click network_devnet1 which opens the Network Overview pane for network_devnet1

6. Click Network attachments and verify network_devnet1 is attached to both leaf switches.
